Power Stack
- Power rating: 100kVA
- Rated voltage/current: 380V/150A
- DC voltage: 800V
- Typical switching frequency: 20kHz
- Topology: Single phase/NPC I-type 3-level
- Power stack component: Integrated IGBT,sunbber capacitor
- Gate driver protection function:
- Short-circuit soft shutdown/
- power supply undervoltage protection/
- fault timing protection/
- GE short-circuit protection
- Current or NTC sampling
- Dual-channel NTC sampling,
- maximum temperature output/
- temperature difference protection
- DC capacitance*: External DC capacitor board
Description
HIITIO’s Power Stack Modules integrate IGBT devices, gate drivers, heat sinks, and busbars into compact, high-efficiency systems. With power ratings up to 1.7 MW and DC voltages up to 1600 V, they feature intelligent protection, precise control, and excellent thermal management. Ideal for energy storage systems (ESS), photovoltaic and wind converters, EV chargers, and power quality equipment requiring high reliability and superior performance.
| Product part No. | Power rating | Rated voltage/current | DC voltage | Typical switching frequency | |
|---|---|---|---|---|---|

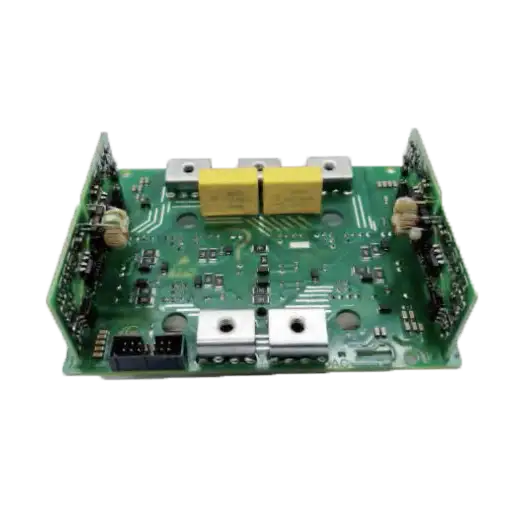

 | HPI-H2SC0210L-db-B3 | 100kVA | 380V/150A | 800V | 20kHz |

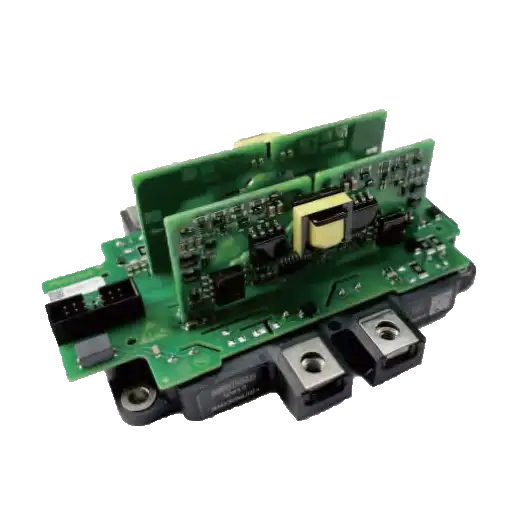

 | HPI-H2SC0210L-db-A5 | 180kVA | 690V/150A | 1500V | 20kHz |

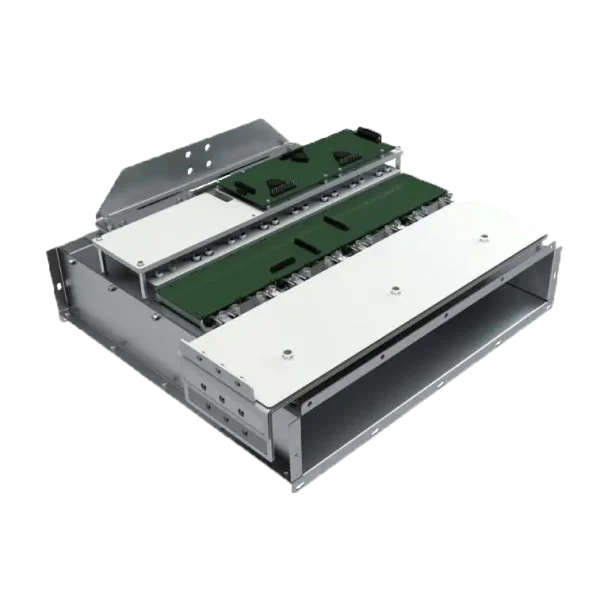

 | HPS150HA124TA002 | 1.725MW | 690V/1442A | 1500VDC | 3.5 kHz |
 | HPS036TA121XWP001 | 450kW | 750V/350A | 1600VDC | 3.5 kHz |
Additional information
| Rated Voltage | 380V, 690V, 750V |
|---|---|
| Rated Current | 150A, 350A, 1442A |
