Plug-and-Play Gate Driver
- 1.2W/20A supports applications up to 30KHz
- Suitable for modules up to 1700V
- Short circuit protection (soft shutdown)
- UVLO, active clamp
- Support multi-level applications
- Intelligent fault management
- Gate short circuit protection
- Capacitive coupling isolation
Description
HIITIO’s Plug-and-Play Gate Drivers, developed with intelligent chips and digital drive technology, offer high performance, easy integration, and reliable protection for IGBT and SiC modules up to 6500 V. With compact design and optical or electrical interfaces, they simplify system design while ensuring precise, safe operation. Ideal for PV inverters, wind power, energy storage systems, rail traction, UPS, and industrial motor drives.
| Product part No. | Output power per channel/ Gate peak current | Voltage class | Cross reference | |
|---|---|---|---|---|
 | H2HD0115 | 1.2W/20A | 1700V | 2SP0115T |
| H2HD0115Cx | 1.2W/20A | 1700V | / |

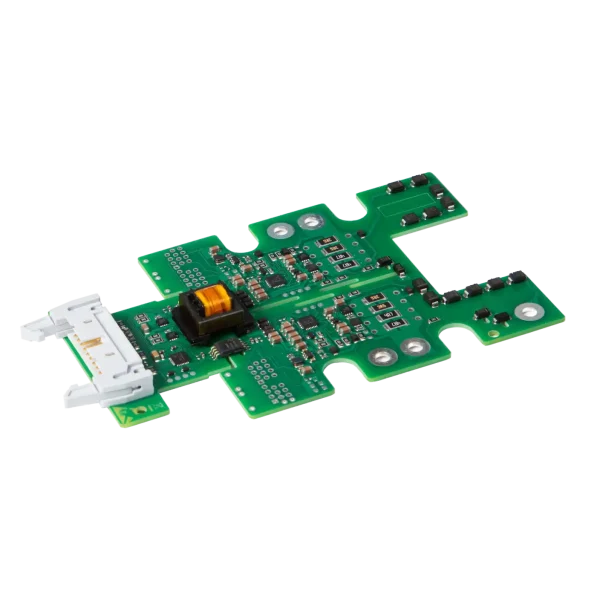

 | H2HD0320 | 3W/20A | 1700V | 2SP0320T |
 | HPM110TRP | 4W/38A | 1700V | 2SP0320*3 |

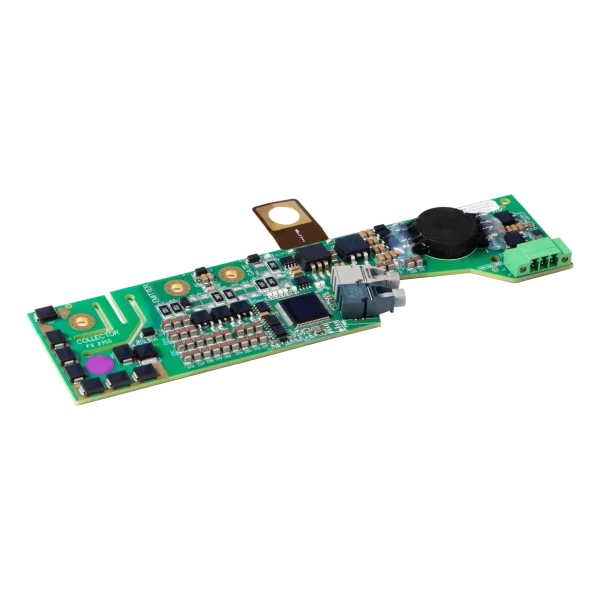

 | H1SD08110 | 8W/110A | 1700V,3300V | 1SP0635 |

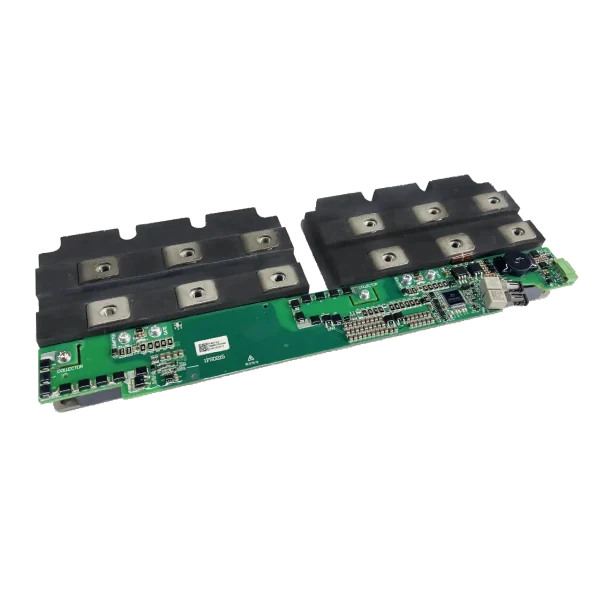

 | H1SD215 | 8W/110A | 1700V,3300V | 1SP0635 |

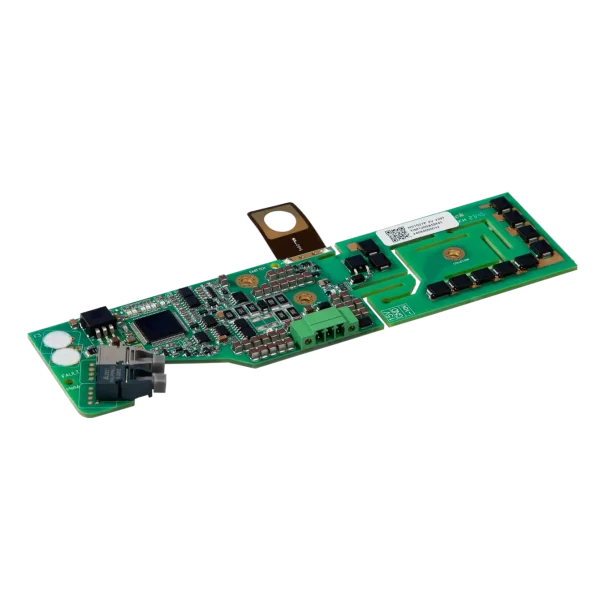

 | HV1027P | 3W/27A | 4500V,6500V | 1SP0335 |

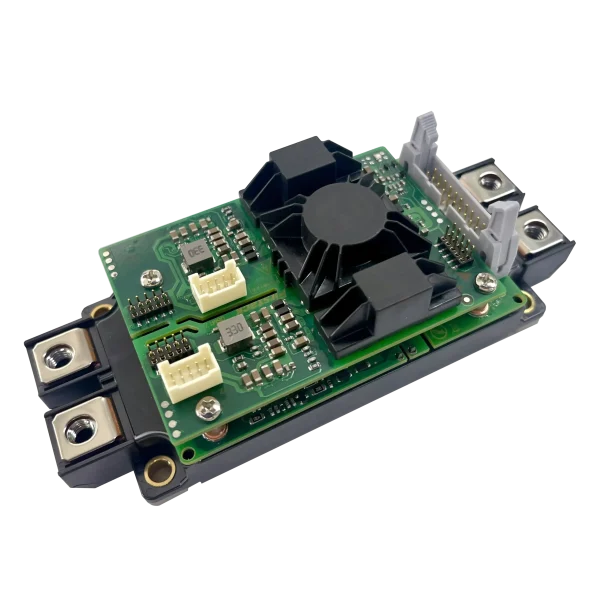

 | H2HD0620 | 6W/20A | 1700V | / |
Additional information
| Voltage Class | 1700V, 3300V, 4500V, 6500V |
|---|
