Application Specific Gate Driver Solutions
- 4W/108A, high peak current
- Suitable for module short-circuit protection (soft shutdown)
- Up to 1700V
- UVLO
- Support temperature sampling
- Intelligent fault management
- Graded shutdown
- Three-level sequence management
Description
HIITIO’s Application Specific Gate Driver Solutions are engineered for demanding applications such as PV, wind power, rail traction, energy storage, and industrial drives. With output power up to 8 W and peak gate current up to 110 A, these drivers deliver efficient, stable, and safe operation across various module packages. Their modular design ensures easy system integration and high reliability in harsh, high-power environments.
| Product part No. | Output power per channel/ Gate peak current | Module packages | Applications | |
|---|---|---|---|---|

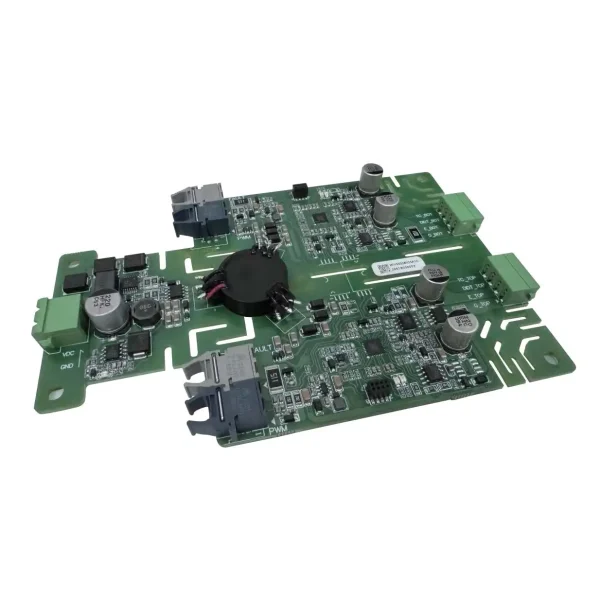

 | H2SS0338 | 3W/38A | Depends on slave boards | Rail Converter |

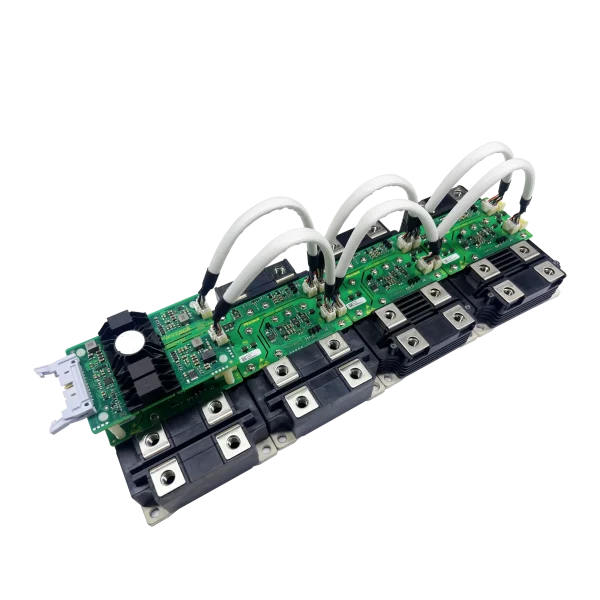

 | H2HC06M33XX | 6W | Depends on slave boards | PV Wind Rail |

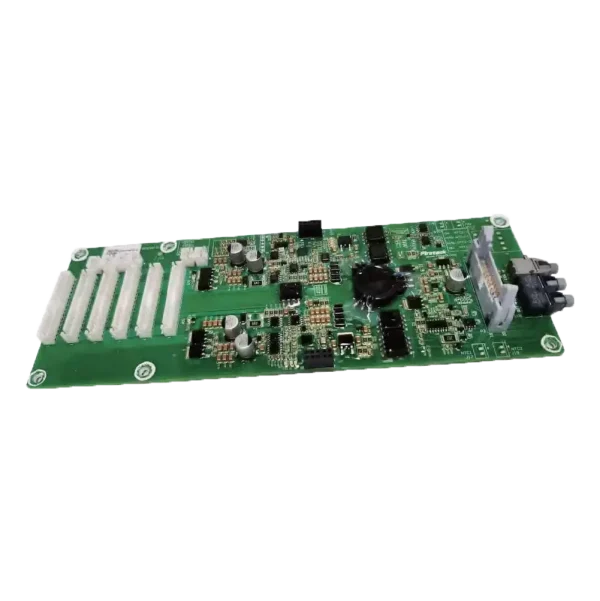

 | H6SC08110 | 8W/110A | Depends on slave boards | PV Wind Industrial driver |

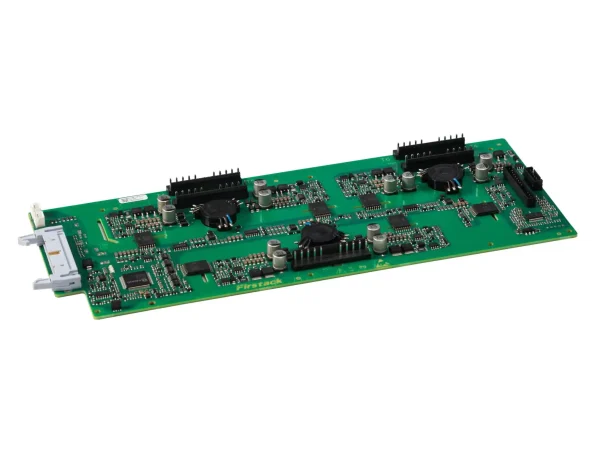

 | HED-WP-CB series | 4W/108A | Depends on slave boards | PV Wind ESS |
| Product part No. | Output power per channel/ Gate peak current | Module packages | Cross reference | |
|---|---|---|---|---|

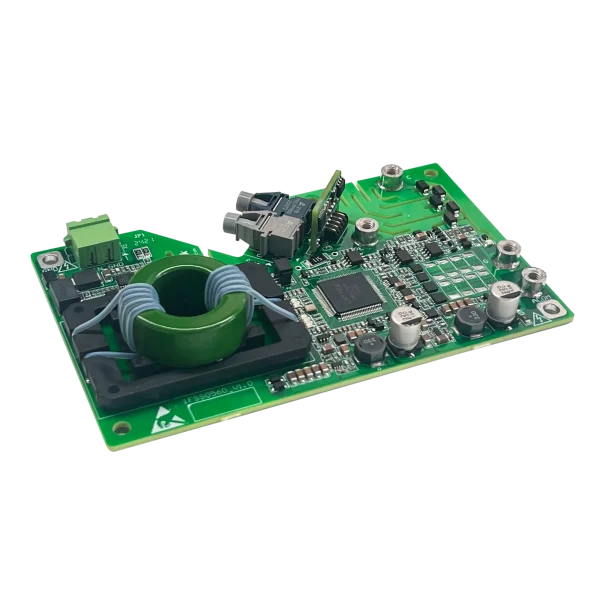

 | H1SS0560 | 5W/60A | Depends on slave boards | 1IPSE1A33-60C |

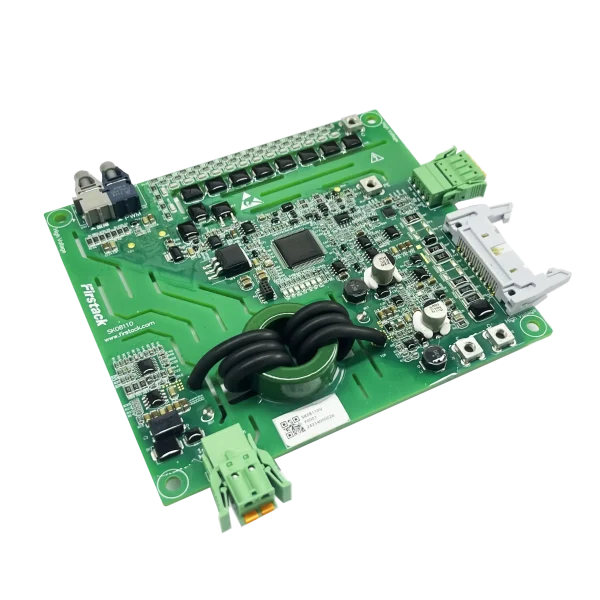

 | HSK08110 | 8W/110A | Depends on slave boards | 1SP0351 |
Additional information
| Package | Depends on slave boards |
|---|
