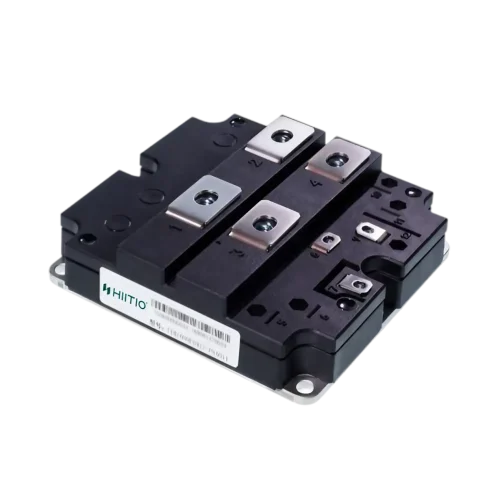

4500V 1200A High Voltage IGBT Power Module-E
The HCGM1200ESM45-PSA011 High Voltage IGBT Power Module (4500V/1200A) features an AlSiC baseplate, AIN substrates, high thermal cycling capability, low Vce(sat), and 10μs short-circuit withstand, ensuring efficient cooling and stability for traction drives, motor controllers, smart grids, and high-reliability inverters.
Description
The HCGM1200ESM45-PSA011 High Voltage IGBT Power Module is designed for high-voltage, high-power applications, rated at 4500V/1200A. Featuring an AlSiC baseplate and AIN substrates, it ensures superior thermal management and electrical performance. With high thermal cycling capability and 10μs short-circuit withstand, this module guarantees stable operation in extreme conditions. The low Vce(sat) design reduces power losses, while high current density enhances power handling capacity, making it an ideal choice for traction drives, motor control, smart grids, and high-reliability inverters.
Features
- AlSiC Baseplate: Enhances heat dissipation and module durability
- AIN Substrates: Improves electrical insulation and system reliability
- High Thermal Cycling Capability: Withstands harsh environments for extended lifespan
- 10μs Short Circuit Withstand: Provides superior short-circuit protection for enhanced safety
- Low Vce(sat) Device: Reduces power losses and improves energy efficiency
- High Current Density: Optimizes space utilization, supporting high-power applications
Applications
- Traction Drives (rail transportation, electric locomotives)
- Motor Controllers (industrial drives, automation systems)
- Smart Grid (efficient power management and distribution)
- High Reliability Inverters (wind and solar energy conversion systems)
Additional information
| Module | IGBT |
|---|---|
| Package | E/E2: 190×140×38 |
| Feature | PSA |
| Circuit Diagram | Single Switch |
| Blocking Voltage (V) | 4500 |
| Module Current (A) | 1200 |
