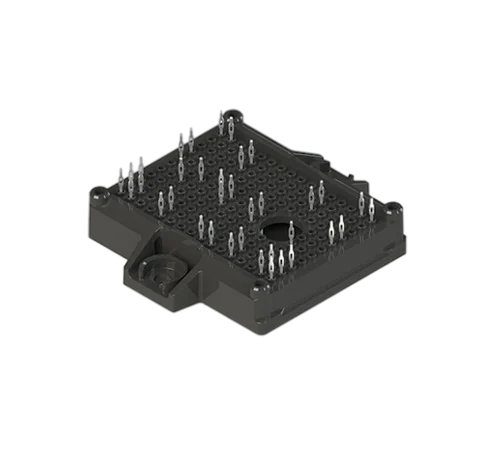

ED3H 1200V 800A SIC Power Module
The HCS800FH120D4B3 is a half bridge lGBT PowerModule. lt integrates high-performance lGBT chips designed for applications such as high-power supply and Motor control.
Description
Features
- 1200V/1.7mΩ @Tj=25℃, VGS=18V
- Low Thermal Resistance with Si3N4 AMB
- 175°C Maximum Junction Temperature
- Low Inductive Design
- Thermistor Inside
Applications
- xEV Applications
- Motor Drives
- Vehicle Fast Chargers
- Smart-Grid/Grid-Tied Distributed Generation
Additional information
| Module | SiC |
|---|---|
| Package | Econo Dual 3C |
| Feature | B3 |
| Circuit Diagram | Half Bridge |
| Blocking Voltage (V) | 1200 |
| Module Current (A) | 800 |
| RDS(on) (mΩ) | 1.7 |
| Tjmax (℃) | 175 |
