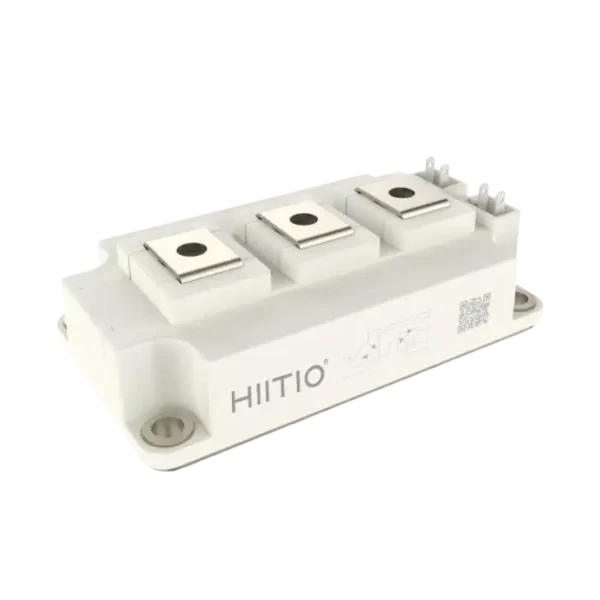

62mm 1200V 400A IGBT Power Module
- 1200V Trench Gate/Field-Stop Process
- Low EMI
- VCEsat with Positive Temperature Coefficient
- Low Switching Loss
- 10μs Short-circuit Capability
Description
The HCG400FH120A2RB is a high-performance Insulated Gate Bipolar Transistor (IGBT) module designed for demanding applications requiring reliability and efficiency. With a collector-emitter voltage of 1200V and a continuous DC collector current of 400A, this module offers exceptional performance across various power conversion systems.
Key Features:
- Voltage & Current Rating: 1200V collector-emitter voltage, 400A continuous DC collector current, 800A peak current.
- Low Switching Losses: Designed to minimize power losses during operation.
- High Short-Circuit Capability: Supports up to 10μs of short-circuit protection, ideal for motor drives, inverters, and renewable energy applications.
- Versatile Applications: Perfect for motor drives, high power converters, photovoltaic systems, UPS, and welding machines.
- Thermal Efficiency: Low thermal resistance (junction to heatsink: 0.064 K/W) ensures effective heat dissipation, maintaining system reliability.
Additional information
| Module | IGBT |
|---|---|
| Package | 62mm |
| Feature | RB |
| Circuit Diagram | Half Bridge |
| Blocking Voltage (V) | 1200 |
| Module Current (A) | 400 |
