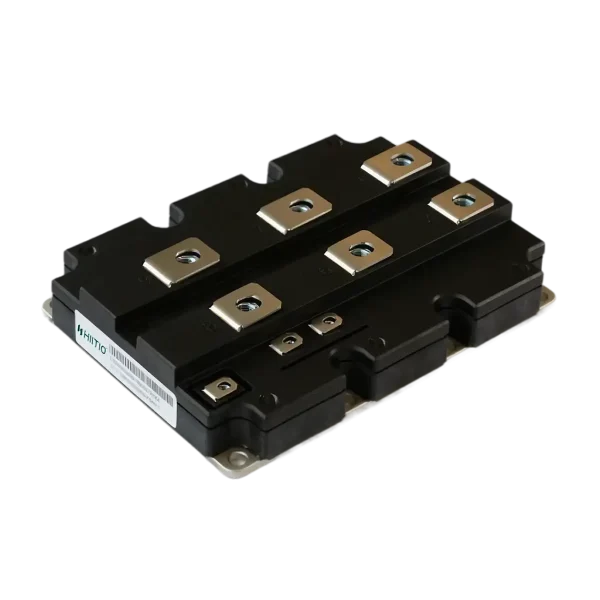

2400V 1700A High Voltage IGBT Power Module
The HCGM2400ESM17-TSA000 single switch IGBT module utilizes advanced AlSiC and AlN technology, offering high thermal cycling capability, low Vce(sat), and high current density. Ideal for traction drives, motor control, smart grids, and high reliability inverters, it delivers stable and efficient performance in demanding industrial applications.
Description
The HCGM2400ESM17-TSA000 single switch IGBT module is engineered for high-performance industrial applications, ensuring excellent electrical performance and thermal management.
Features
- AlSiC Substrate: Delivers outstanding heat dissipation
- AlN Substrate: Enhances module stability and longevity
- High Thermal Cycling Capability: Ideal for environments with frequent temperature changes
- 10μs Short Circuit Withstand: Guarantees safe and reliable operation
- Low Vce(sat): Reduces energy consumption and boosts efficiency
- High Current Density: Supports high-power application requirements
Applications
- Traction drive systems
- Motor control units
- Smart grid solutions
- High reliability inverters
Additional information
| Module | IGBT |
|---|---|
| Package | E/E2: 190×140×38 |
| Feature | TSA |
| Circuit Diagram | Single Switch |
| Blocking Voltage (V) | 2400 |
| Module Current (A) | 1700 |
