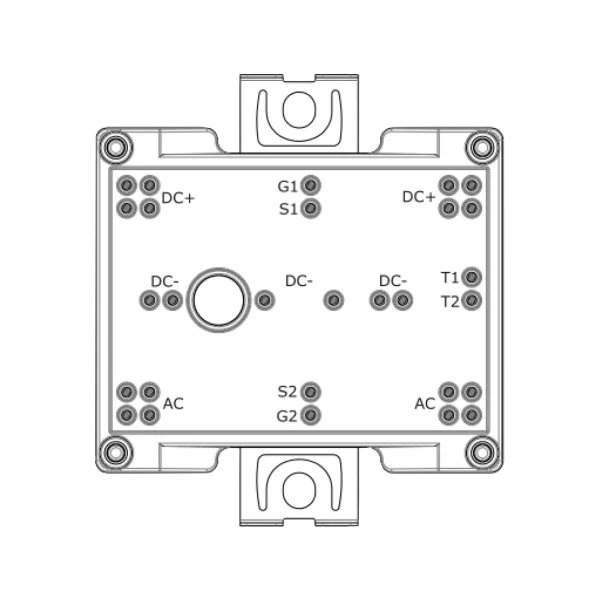

2300V Half Bridge SiC MOSFET Module
- 5mΩ / 2300 V SiC MOSFET Half−Bridge
- Si3N4 AMB
- NTC Thermistor
- Low Inductive Layout
- Solderable Pins
- Isolated Base Plate
Description
HCS05FH230E2B2 is a cutting-edge SiC MOSFET module featuring a 2300V voltage rating and ultra-low 5mΩ on-resistance. It adopts a half-bridge topology with Si₃N₄ AMB technology and is enclosed in an Easy2B package for efficient heat dissipation and mechanical strength.
| MAXIMUM RATINGS | |||
| Rating | Symbol | Value | Unit |
| Drain-Source Voltage | VDsS | 2300 | V |
| Gate-Source Voltage | VGs | +22/-10 | V |
| Continuous Drain Current @Tc=80(TJ=175℃) | IDS | 240 | A |
| Pulsed Drain Current (TJ=175℃) | IDPulse | 300 | A |
| Maximum Power Dissipation @Tc=80℃(TJ=175℃) | Ptot | 800 | W |
| Minimum Operating Junction Temperature | TJMIN | -40 | ℃ |
| Maximum Operating Junction Temperature | TJMAX | 175 | ℃ |
Additional information
| Module | SiC MOSFET |
|---|---|
| Package | Easy 2B |
| Blocking Voltage (V) | 2300 |
