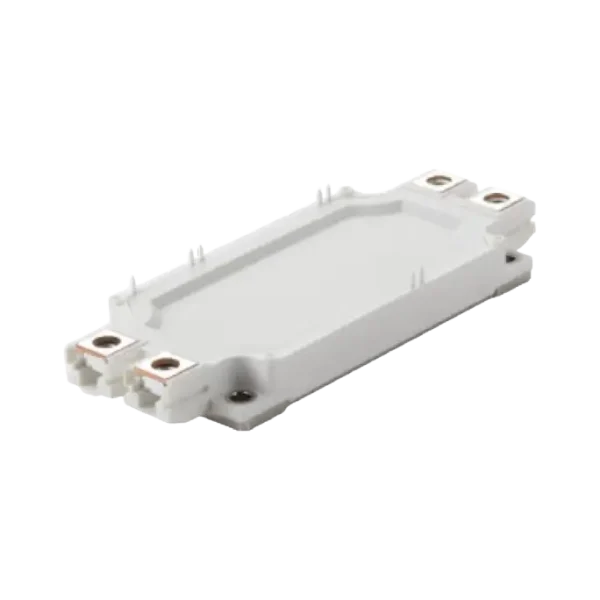

1700V 225A IGBT Module, E6 Package, with FWD and NTC
- 1700V collector-emitter voltage, 225A rated current
- Low VCE(sat) and low switching loss
- Built-in freewheeling diode and NTC thermistor
- Positive temperature coefficient, high reliability
- High short-circuit withstand time (10μs)
- E6 package, compact and robust design
Description
The HCG225FH170D3K4 is a high-performance IGBT module designed with a 1700V trench gate and field stop structure, featuring integrated freewheeling diode (FWD) and NTC thermistor. With a rated collector current of 225A, it provides low switching loss, high reliability, and excellent short-circuit withstand capability.
Maximum Ratings
| Parameter | Symbol | Condition | Value | Unit |
|---|---|---|---|---|
| Collector-emitter voltage | VCES | VGE=0V,Ty=25℃ | 1700 | V |
| DC collector current | lc | Tc=120℃,Tvjmax=175℃ | 225 | A |
| Peak collector current | ICM | tp=1ms | 450 | A |
| Gate-emitter peak voltage | VGES | ±20 | V | |
| Total power dissipation | Ptot | Tc=25℃,Tvjmax=175℃ | 1830 | W |
| Repetitive peak reverse voltage | VRRM | Tvj=25℃ | 1700 | V |
| Continuous DC forward current | IF | 225 | A | |
| Repetitive peak forward current | IFRM | tp=1ms | 450 | A |
| Rt-value | 12t | VR=0V,tp=10ms,Tvj=125℃ | 7300 | A2s |
| IGBT short circuit withstand time | tpsc | 10 | μs | |
| Maximum junction temperature | Tvjmax | 175 | ℃ | |
| Operating junction temperature | Tvjop | -40~150 | ℃ | |
| Storage temperature | Tstg | -40~125 | ℃ |
Additional information
| Module | IGBT |
|---|---|
| Package | E6 |
| Circuit Diagram | Half Bridge |
| Blocking Voltage (V) | 1700 |
| Module Current (A) | 225 |
