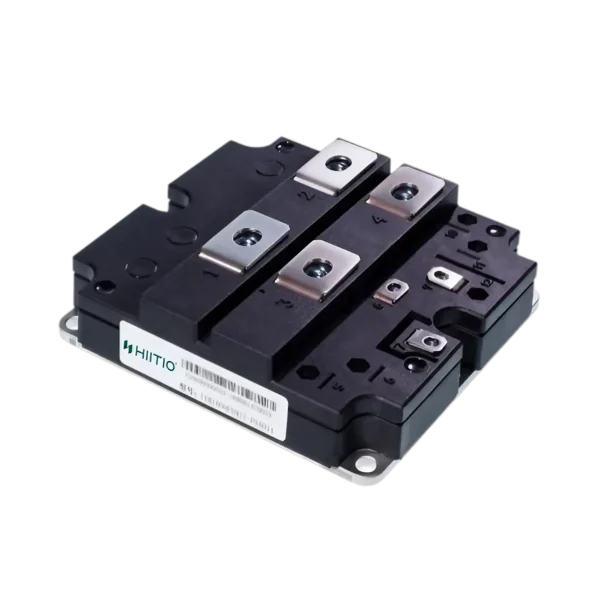

1700V 1600A High Voltage IGBT Power Module
The HCGM1600FSM17-PSA is a robust 1700V, 1600A single switch IGBT module, tailored for high-demand applications like traction drives and wind power, delivering superior reliability and efficiency.
Description
The HCGM1600FSM17-PSA is a cutting-edge single switch IGBT module engineered for high-performance power systems, featuring a 1700V voltage rating and 1600A current capacity. Designed to meet the demands of robust industrial and renewable energy solutions, it ensures exceptional efficiency and reliability.
Features
- High Thermal Cycling Capability: Ensures long-term durability under extreme thermal conditions.
- 10μs Short Circuit Tolerance: Provides robust protection against electrical faults.
- Low VCE(sat): Reduces power losses for improved energy efficiency.
- High Current Density: Supports compact designs with maximized power output.
Applications
- Traction Drives: Powers railway and electric vehicle systems with reliability.
- Motor Controllers: Enhances precision and efficiency in industrial motors.
- Wind Power: Optimizes energy conversion in wind turbine systems.
- High Reliability Inverters: Ideal for critical power inversion applications.
Additional information
| Module | IGBT |
|---|---|
| Package | F/D: 140×130×38 |
| Feature | PSA |
| Circuit Diagram | Single Switch |
| Blocking Voltage (V) | 1700 |
| Module Current (A) | 1600 |
