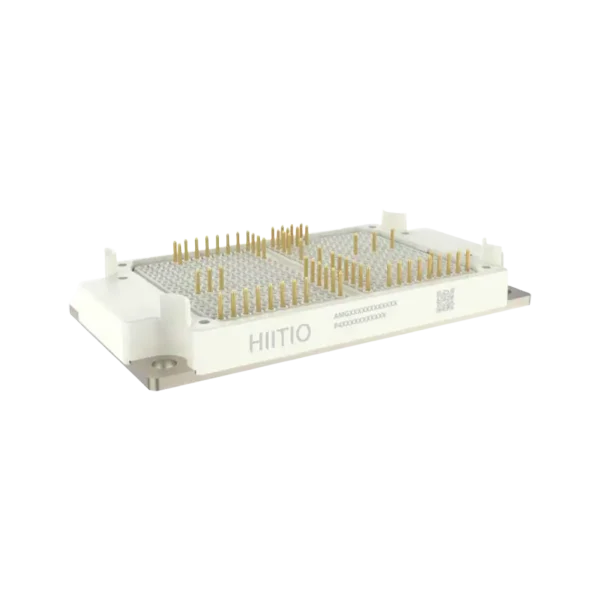

1200V 300A Easy 3B IGBT Power Module
- Collector-Emitter Voltage (VCES): 1200V
- DC Collector Current (ICDC): 228A
- Repetitive Peak Collector Current (ICRM): 600A
- Total Power Dissipation (Ptot): 475W
- Gate-Emitter Voltage (VGES): ±20V
- Operating Junction Temperature (Tj): Up to 175°C
- Isolation Voltage (Visol): 3.0kV RMS
Description
The HCG300FL120E3RA is a high-performance 1200V 300A IGBT module from Zhejiang HIIITIO New Energy Co., Ltd., designed for advanced 3-level NPC inverter applications. Featuring a low-inductance layout, low VCEsat, and minimal switching losses, it ensures high efficiency and reliability. The module’s copper baseplate and Al2O3 substrate provide excellent thermal management, while its compact design simplifies installation.
Key Features:
- 1200V 3-Level NPC Topology: Optimized for high-power inverter systems.
- Low VCEsat & Switching Losses: Enhances efficiency in high-frequency applications.
- Copper Baseplate & Al2O3 Substrate: Superior thermal conductivity.
- Low-Inductance Layout: Reduces EMI for stable performance.
- Integrated NTC Thermistor: Precise temperature monitoring.
- Wide Applications: Suitable for PCS, UPS, solar systems, and APF/SVG.
Additional information
| Module | IGBT |
|---|---|
| Package | Easy 3B |
| Feature | RA |
| Circuit Diagram | FL：3-level，I Type，NPC Inverter |
| Blocking Voltage (V) | 1200 |
| Module Current (A) | 300 |
