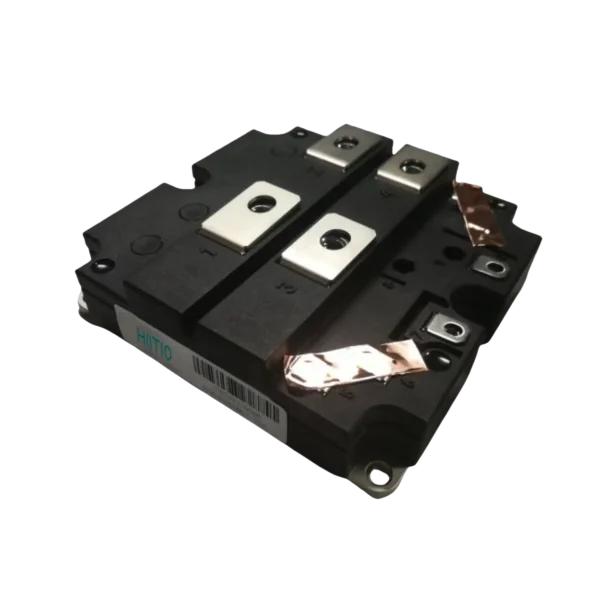

1700V 1200A High Voltage IGBT Power Module-Dual Switch
High-performance HCGM1200DDM17-TSA000 IGBT module for traction drives, motor controllers, and inverters with 1700V voltage and 1200A current capacity.
Key Features:
-
AlSiC baseplate for superior thermal management.
-
AlN substrates enhance the module’s stability and efficiency.
-
High thermal cycling capability ensures long-lasting reliability.
-
10µs short-circuit withstand time for robust operation.
Description
The HCGM1200DDM17-TSA000 Dual Switch IGBT Module is designed for high-performance applications in power electronics, including traction drives, motor controllers, and high-reliability inverters. With a VCES rating of 1700V and a maximum collector current (IC) of 1200A, this module delivers exceptional reliability and performance in demanding conditions.
Technical Specifications:
-
Maximum Collector-Emitter Voltage (VCES): 1700V
-
Maximum Collector Current (IC): 1200A
-
Isolation Voltage: 4000V (1-minute test)
-
Operating Temperature: -40°C to 150°C
-
Weight: 900g
Additional information
| Module | IGBT |
|---|---|
| Package | DFN8*8 |
| Feature | PSA |
| Circuit Diagram | Single Switch |
| Blocking Voltage (V) | 6500 |
| Module Current (A) | 750 |
